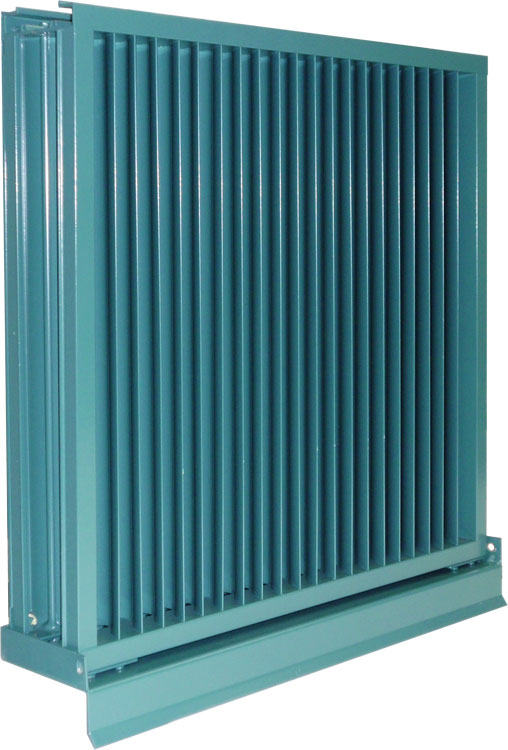

Model: | AS3D99VS |
Filter: | AS3D99VS |
Minimum Size: | 12" x 12" |
Maximum Size: | 60" x 96" |
Frame Depth: | 3" Deep |
Frame Material: | .081" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Material: | .040" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Drain Sill Pan Material: | .060" Thick Formed Aluminum |
Blade Orientation: | Vertical |
Blade Type: | Chevron |
Blade Angle: | N/A |
Continuous Line: | No |
Face: | Head and Blades Contained Within Jambs |
Screen Options: | Standard Bird Screen: ½" Expanded Aluminum Bird Screen; Variety of Bird and Insect Screen Options |
Free Area: | 44% (7.06 ft2 for 48" x 48") |
Pressure Drop: | 0.085 in. w.g. at 1000 fpm and 7060 scfm |
AMCA: | Certified for Air Performance and Water Penetration |
